MEAX Coaxiality

2-axis check of spindle/toolholder

MEAX Coaxiality
MEAX Coaxiality - Bild 2
MEAX Coaxiality - Bild 3

MEAX Coaxiality

As ever-increasing demands are being placed on machine tools, we have concluded that an optimally functional machine forms the basis for better business. Modern machine tools must maintain a high level of flexibility, a high degree of utilization, and a minimum downtime which calls for the correct geometry in all the machine´s movements.

So we created MEAX and started to sketch solutions for machine tool measurement that, in our opinion, are also self-evident that they should have been developed a long time ago.  By performing fast measurements, possessing a logical user interface, smart application, and fewer complicated functions, we can now build a future machine tool measurement.

MEAX Coaxiality

As ever-increasing demands are being placed on machine tools, we have concluded that an optimally functional machine forms the basis for better business. Modern machine tools must maintain a high level of flexibility, a high degree of utilization, and a minimum downtime which calls for the correct geometry in all the machine´s movements.

So we created MEAX and started to sketch solutions for machine tool measurement that, in our opinion, are also self-evident that they should have been developed a long time ago.  By performing fast measurements, possessing a logical user interface, smart application, and fewer complicated functions, we can now build a future machine tool measurement.

Offert

Beskrivning

Meax® Coaxiality Features

• Easy Installation – Quick setup, no adjustments, no laser alignment, no need to check the centering.
• App-Based – Easy to get started! Use your phone!

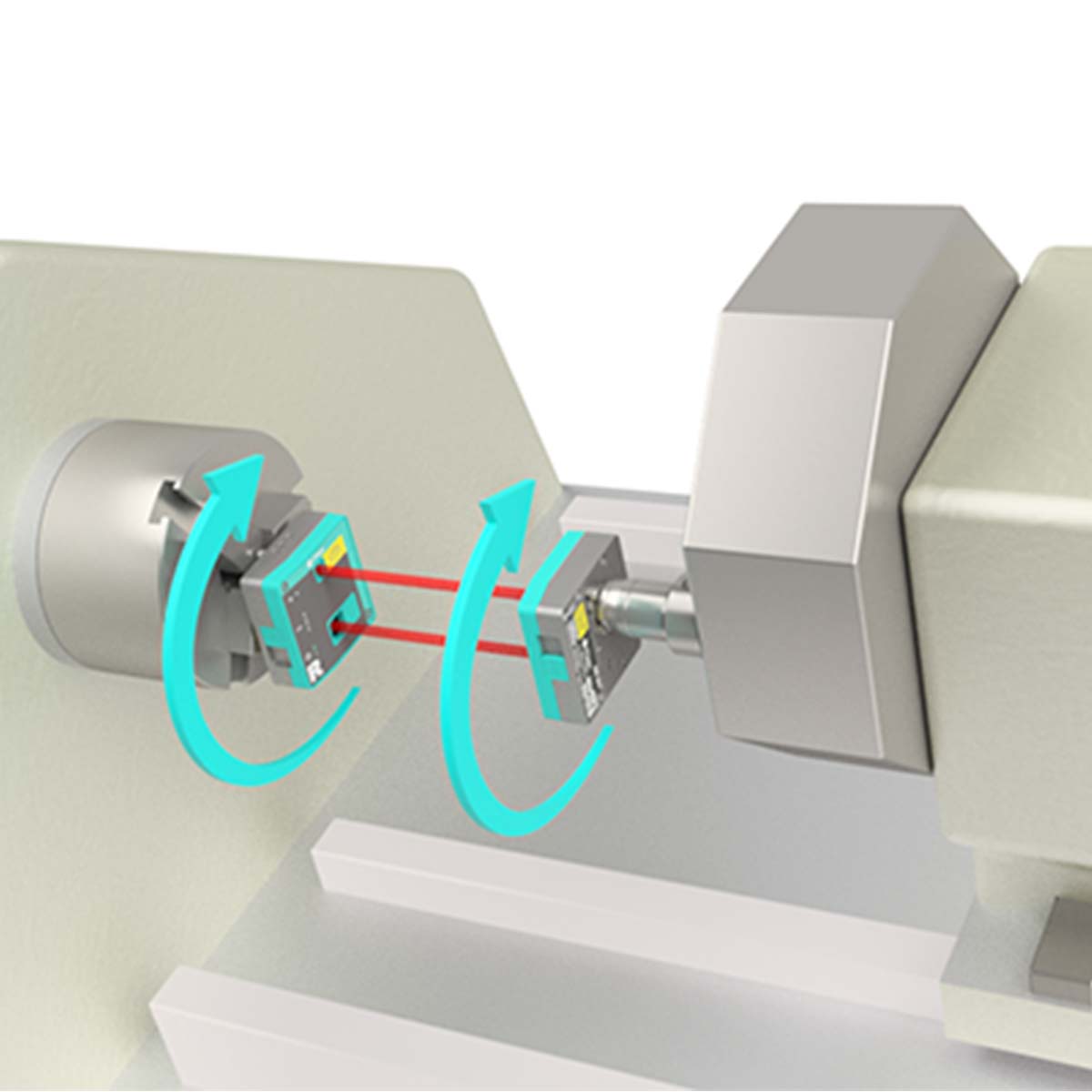

• Wireless – Allows for rotating the machine’s chuck during the measurement process. Doors can be closed during measurement.
• 2-Axis Sensors – MEAX Coaxiality reads two angles in the same measurement.
• Save and Share – Results are saved on your device and can be easily shared. • Measurement Range – up to 5 meters.

Logical interface

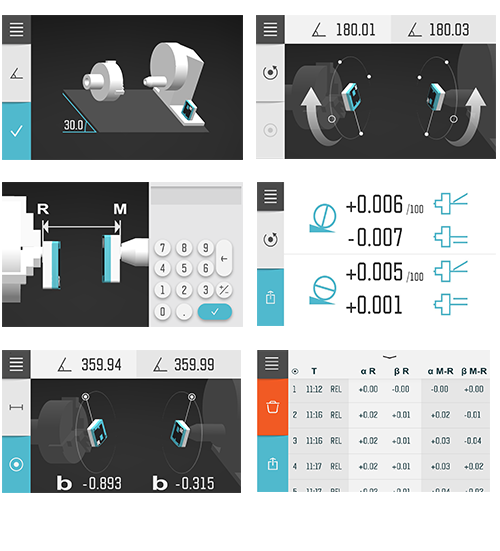

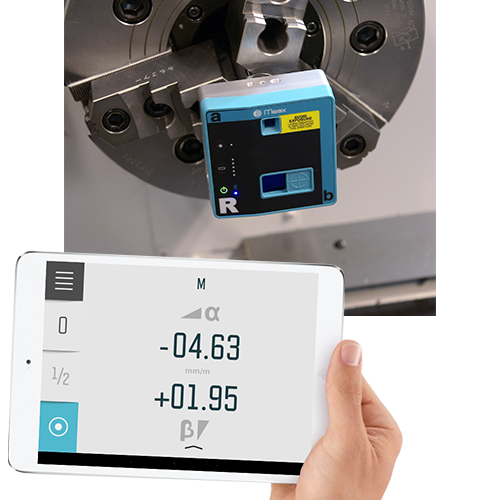

MEAX Coax is equipped with Bluetooth, which you use to connect to your mobile unit (iOS or Android). This is easily achieved by the user-friendly  MEAX Coax App. It displays the angle deviation down to resolution of 0,001 mm/m. The results are saved on your device, and can be shared in any way you wish from your file handling system, through e-mail, etc.





Industrial use

  • Both sensors come fitted with batteries sufficient for 12 hours’ continuous operation.
  • Each sensor include a battery indicator which displays the battery status without activating the sensors or tablet.
  • The designed and color are customized  to be easily seen in industrial environment.
  • MEAX Coax is also IP65-classed, giving a significant level of protection against liquids and dust.

Dokument

Brochure (PDF)

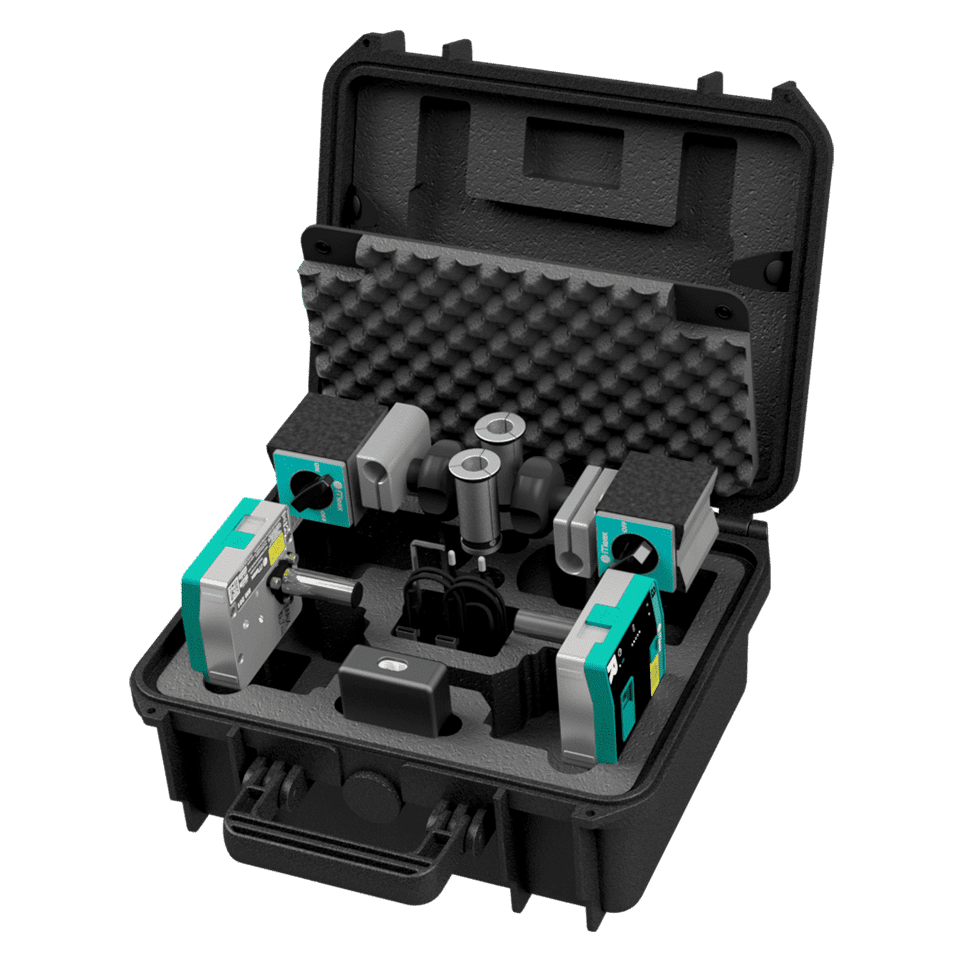

What’s in the case? (PDF)

Ladda ner appen
